Steam Hose (Single Wire):
Application : For transfer of steam at high temperature
Recommended for : With excellent steam handling the hose features a specially compounded, perforated synthetic rubber cover intended for use where the hose is exposed to all types of steam -saturated and superheated - upto 150 psi and 195°C. WARNING : DO NOT THE ALTERNATE USE BETWEEN STEAM AND WATER
Tube : EPDM Black.
Reinforcement : Single Braid of High Tensile
Brass Coated Steel Wire.
Cover : EPDM - Black. All sizes are perforated.
Service Temperature Range : -40ºC to +195ºC.
Single Wire
| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal I.D. | Mean O.D | Working Pressure | Min. Burst Pressure | ||||||
| mm | Inch | mm | Inch | Kg/cm2 | Mpa | PSI | Kg/cm2 | Mpa | PSI |
| 20.0 | 3/4 | 31.0 | 1.22 | 10 | 1 | 150 | 100 | 10 | 1500 |
| 25.0 | 1 | 36.6 | 1.44 | 10 | 1 | 150 | 100 | 10 | 1500 |
| 31.5 | 1¼ | 43.5 | 1.71 | 10 | 1 | 150 | 100 | 10 | 1500 |
| 38.0 | 1½ | 50.6 | 1.99 | 10 | 1 | 150 | 100 | 10 | 1500 |
| 50.0 | 2 | 63.5 | 2.50 | 10 | 1 | 150 | 100 | 10 | 1500 |

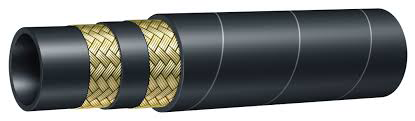

Steam Hose (Double Wire):
EXCEEDS IS : 10655 Type 3 & BS : 5342 Type 2
Application : For medium pressure hydraulic requirements.
Recommended for : Steam King is a tough, flexible hose designed for a range of heavy-duty industrial uses including heat control, melting of substances such as wax and glue, thawing, cleaning and steam transfer applications. It will handle all type of steamsaturated and superheated - up to 185 psi and
+232°C. WARNING: DO NOT ALTERNATE USE
BETWEEN STEAM AND WATER.
Tube : EPDM Black.
Reinforcement : 1/2"- One Braid of High
Tensile Brass Coated Steel Wire.
3/4" upto 2" - Two Braid of High Tensile
Brass Coated Steel Wire.
Cover : EPDM - Black. All sizes are perforated.
Service Temperature Range : -40ºC to +232ºC
Double Wire
| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal I.D. | Mean O.D | Working Pressure | Min. Burst Pressure | ||||||
| mm | Inch | mm | Inch | Kg/cm2 | Mpa | PSI | Kg/cm2 | Mpa | PSI |
| 12.5* | ½* | 26.9 | 1.06 | 17 | 1.7 | 250 | 170 | 17 | 2500 |
| 20.0 | ¾ | 32.3 | 1.27 | 17 | 1.7 | 250 | 170 | 17 | 2500 |
| 25.0 | 1 | 38.5 | 1.52 | 17 | 1.7 | 250 | 170 | 17 | 2500 |
| 31.5 | 1¼ | 46.0 | 1.81 | 17 | 1.7 | 250 | 170 | 17 | 2500 |
| 38.0 | 1½ | 54.3 | 2.14 | 17 | 1.7 | 250 | 170 | 17 | 2500 |
| 50.0 | 2 | 67.5 | 2.66 | 17 | 1.7 | 250 | 170 | 17 | 2500 |
