Carbon Free Hose

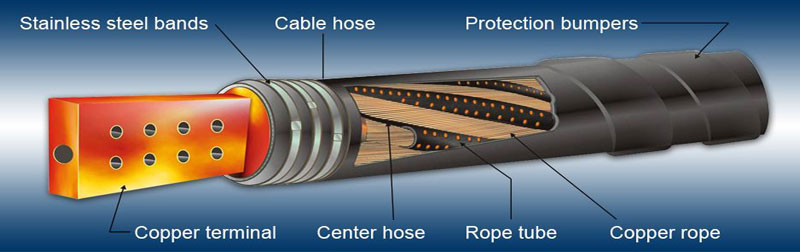

We are a renowned name as Manufacturer, Exporter, and Supplier of Carbon Free Hose Pipes in India. The Hose Pipes, we bring forth, are manufactured with the use of high-grade stainless steel bands, compact cable hoses, copper rope, protection bumpers, etc. as per the industry set quality standards. They are used in a number of industries and are highly demanded owing to their superior performance, heat resistant quality, and excellent finish. To entertain the varied piping needs of buyers, these Carbon Free Hose Pipes are made available in different specifications.

Specifications :

  •  Hose is made up of water resisting & water proof rubber.
  •  Surfaces at both the ends of Hose are finished flat, while remaining surface is finished corrugated.
  •  The flat finished surfaces relieve the repeated bending stress applied to the conductor end.
  •  On the surface of Hose, water proof material is adhered during the vulcanization process.
  •  Stainless Steel clamps will be used to clamp the Hose Pipes.





Sizes with Variable lengths :

  •  1/2" to 3"



Asbestos Covered Furnace Coolant Hose, Heat Resistant Carbon Free Hose, Cable Coolant Hose



Application:

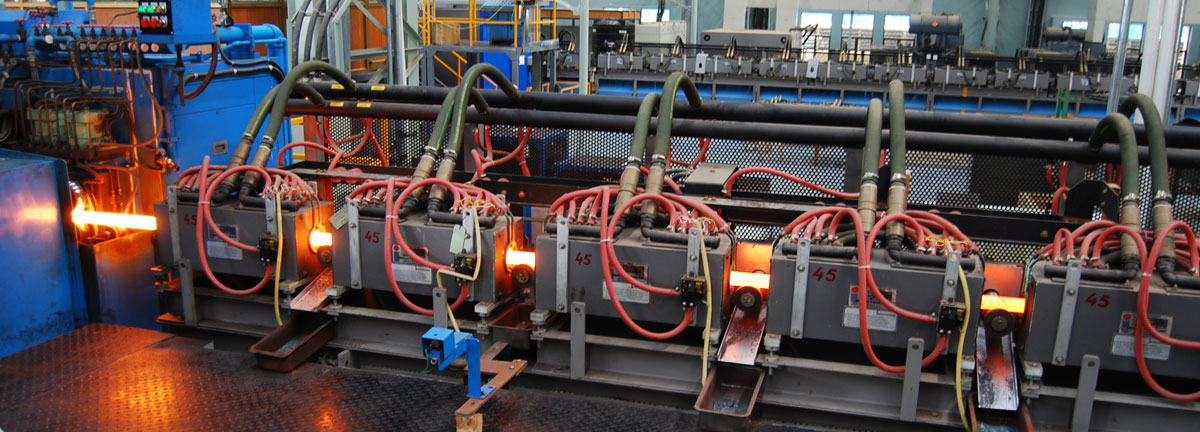

For carrying power cables in glass works, electrical furnaces, servicing in iron & steel industries for protection from exposure to high temperature, current leakage, radiation from steel furnace, open flame and splashes of hot metal.

Construction :

  •   Lining : Smooth, non conductive, natural/ synthetic/blend rubber compound.
  •   Reinforcement : Natural/synthetic rubberized woven textile fabric.
  •   Cover : Oil, heat and electrical resistant synthetic rubber compound with or
             without asbestos outer.



Nom. Bore in (mm) Tolerance on Nom. bore (mm) W.P.( Kg. / cm2 ) P.P. ( Kg. / cm2 ) B.P. ( Kg. / cm2 )
12.5 ± 0.75 10.0 20.0 40.0
16.0 ± 0.75 10.0 20.0 40.0
20.0 ± 0.75 10.0 20.0 20.0
25.0 ± 1.25 ± 1.25 20.0 40.0
28.0 ± 1.25 10.0 20.0 40.0
31.5 ± 1.25 10.0 20.0 40.0
35.0 ± 1.50 10.0 20.0 40.0
38.0 ± 1.50 10.0 20.0 40.0
50.0 ± 2.00 10.0 20.0 40.0
56.0 ± 2.00 10.0 20.0 40.0
60.0 ± 2.00 10.0 20.0 40.0
63.0 ± 2.00 10.0 20.0 40.0
70.0 ± 2.00 10.0 20.0 40.0
75.0 ± 2.00 10.0 20.0 40.0
100.0 ± 2.50 10.0 20.0 40.0
150.0 ± 3.00 10.0 20.0 40.0
